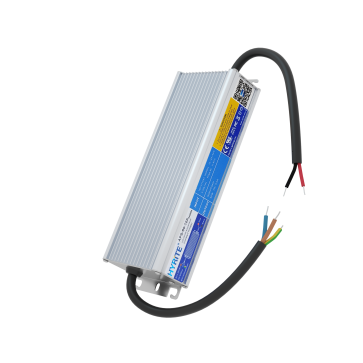

APS-A 60W UL Recognized LED Power Supply | APS-60-12A / APS-60-24A
- APS-A 60W constant-voltage LED power supply
- APS-60-12A: 12V DC, 5A; APS-60-24A: 24V DC, 2.5A
- UL Recognized Component
- IP68-rated construction with an aluminum housing
- 90–295V AC input; active PFC
- Efficiency: 88%
- 5 Year warranty*(with conditions)
- Check model-specific derating and request a project quotation
Availability: In stock
You must logged in to see Price.
Related
-
APS-A 300 Series UL Recognized LED Power Supply | 12V 270W / 24V 300WYou must logged in to see Price.Add to Wishlist -
APS-A 180W UL Recognized LED Power Supply | APS-180-12A / APS-180-24AYou must logged in to see Price.Add to Wishlist -
APS-240-12A LED Power Supply | Optional Class 2, Four 60W OutputsYou must logged in to see Price.Add to Wishlist -
APS-120-12A Class 2 LED Power Supply | Dual 60W OutputsYou must logged in to see Price.Add to Wishlist
Details
Details
APS-A 60W constant-voltage LED power supply for LED lighting and signage projects. Available models: APS-60-12A (12V DC, 5A) and APS-60-24A (24V DC, 2.5A).
Model options
- APS-60-12A: 12V DC, 5A, 60W
- APS-60-24A: 24V DC, 2.5A, 60W
Specifications and derating
Both models: UL Recognized Component; 90–295V AC input, 47–63Hz; IP68 enclosure; 197 × 71.5 × 38mm; 0.87kg net weight. Output capability depends on input voltage and ambient temperature; consult the model-specific specification and derating curves when selecting a supply.
Request a project quotation
Enquire about APS-60-12A (12V) Enquire about APS-60-24A (24V)
Please include your required quantity, destination country and application. Our team can confirm the current specification and documentation for your market.
Additional Info
Additional Info
| Model no. | APS-60-12A / APS-60-24A |
|---|---|
| Input voltage | 90-295 VAC 47-63 Hz |
| Input Voltage System | 100-240VAC |
| Max. output power | 60 W max |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 12VDC / 24VDC |
| Max. output current | 5 A / 2.5 A |
| Installation | Outdoor waterproof |
| Protection | Overload, Short circuit |
| Dimensions(L*W*H) | 197*71.5*38mm |
| Weight(kg) | 0.8700 |
Datasheets
 APS-60-12A Specification — 2025.05.12 Size: (529.14 KB) |
|
| APS-60-24A Specification — 2025.05.12 Size: (517.55 KB) |
