APS-A 180W UL Recognized LED Power Supply | APS-180-12A / APS-180-24A

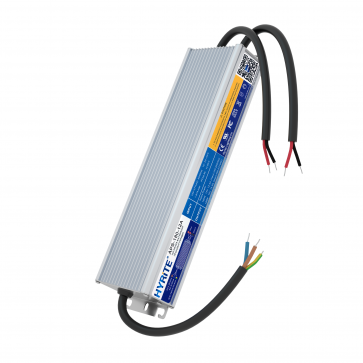

- APS-A 180W constant-voltage LED power supply
- Standard models: APS-180-12A, 12V/15A; APS-180-24A, 24V/7.5A
- UL Recognized Component; IP68-rated construction
- 100–277V AC input (±10%); active PFC
- Optional 12V Class 2 version: three outputs, each 5A and 60W; 180W total
- Confirm the required version and its specifications before ordering
- Check input-voltage and temperature derating for your project
Availability: In stock
You must logged in to see Price.
Related
-
APS-A 300 Series UL Recognized LED Power Supply | 12V 270W / 24V 300WYou must logged in to see Price.Add to Wishlist -
APS-120-12A Class 2 LED Power Supply | Dual 60W OutputsYou must logged in to see Price.Add to Wishlist -
APS-240-12A LED Power Supply | Optional Class 2, Four 60W OutputsYou must logged in to see Price.Add to Wishlist -
APS-A 60W UL Recognized LED Power Supply | APS-60-12A / APS-60-24AYou must logged in to see Price.Add to Wishlist
Details
Details
APS-A 180W constant-voltage LED power supply for LED lighting and signage projects. Select the output voltage to match your LED load.
- APS-180-12A: 12V DC, 15A, 180W
- APS-180-24A: 24V DC, 7.5A, 180W
Both models: UL Recognized Component; 100–277V AC (±10%), 47–63Hz; IP68 enclosure; active PFC; 255 × 71.5 × 38mm; 1.17kg net weight.
Selection note: Available output depends on AC input voltage and ambient temperature. Consult the model-specific derating curves, particularly for 100–120V supplies, and provide adequate ventilation.
For a project quotation, send an enquiry with your model, company, quantity, destination country, AC input voltage and LED application. Our team can confirm the current specification and documentation for your market.

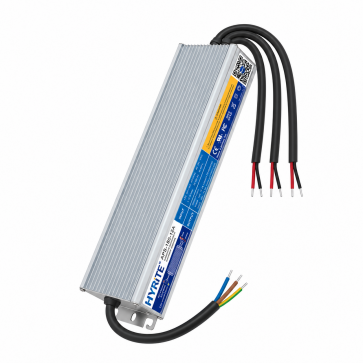

Class 2 option: Optional Class 2 version available with three 60W outputs (180W total).
Additional Info
Additional Info
| Model no. | APS-180-12A / APS-180-24A |
|---|---|
| Input voltage | 100-277 VAC (±10%), 47-63 Hz |
| Input Voltage System | 100-240VAC |
| Max. output power | 180 W max (subject to derating) |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 12VDC / 24VDC |
| Max. output current | 15 A / 7.5 A |
| Installation | Outdoor waterproof |
| Protection | Overload, Short circuit |
| Dimensions(L*W*H) | 255 x 71.5 x 38 mm |
| Weight(kg) | 1.1700 |
Datasheets
 APS-180-12A | 12V 180W | Specification 2024.07.01 Size: (388.87 KB) |
|
| APS-180-24A | Specification 2024.07.01 Size: (381.75 KB) |
