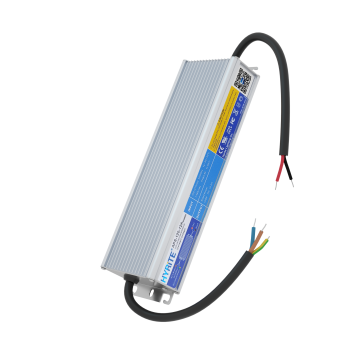

APS-120-12A Class 2 LED Power Supply | Dual 60W Outputs
- APS-120-12A Class 2 constant-voltage LED power supply
- Two 12V DC outputs, each rated at 5A and 60W; 120W total
- UL Recognized Component; IP68-rated construction
- 90–295V AC input; active PFC
- Efficiency: 88%
- 5 Year warranty*(with conditions)
- Request the matching specifications and a project quotation
Availability: In stock
You must logged in to see Price.
Related
-
APS-A 60W UL Recognized LED Power Supply | APS-60-12A / APS-60-24AYou must logged in to see Price.Add to Wishlist -
APS-A 300 Series UL Recognized LED Power Supply | 12V 270W / 24V 300WYou must logged in to see Price.Add to Wishlist -
APS-A 180W UL Recognized LED Power Supply | APS-180-12A / APS-180-24AYou must logged in to see Price.Add to Wishlist -
APS-240-12A LED Power Supply | Optional Class 2, Four 60W OutputsYou must logged in to see Price.Add to Wishlist
Details
Details
APS-120-12A Class 2 constant-voltage LED power supply for LED lighting and signage projects requiring two 12V output circuits.
- DC CH1: 12V DC, 5A, 60W
- DC CH2: 12V DC, 5A, 60W
- Total rated power: 120W across both outputs
UL Recognized Component; IP68 enclosure; 90–295V AC input, 47–63Hz; active PFC; 197 × 71.5 × 38mm; 0.89kg net weight.
Version shown: 12V Class 2 dual-output version. Each output is rated 5A / 60W; the 120W total is not the rating of one output. For other output configurations, contact our team.
Available output depends on AC input voltage and ambient temperature. Consult the specification and derating curves, and allow the recommended load margin when selecting a supply.
For a project quotation, send an enquiry for APS-120-12A Class 2 with your company, quantity, destination country, input voltage and load per output.
Additional Info
Additional Info
| Model no. | APS-120-12A (Class 2, dual output) |
|---|---|
| Input voltage | 90-295 VAC, 47-63 Hz |
| Input Voltage System | 100-240VAC |
| Max. output power | 2 x 60 W; 120 W total |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 12 VDC per output (2 outputs) |
| Max. output current | 5 A per output (2 outputs) |
| Installation | Outdoor waterproof |
| Protection | Overload, Short circuit |
| Dimensions(L*W*H) | 197 x 71.5 x 38 mm |
| Weight(kg) | 0.8900 |
Datasheets
 APS-120-12A Class 2 | Dual 60W | Specification 2025.09.06 Size: (4.02 MB) |
