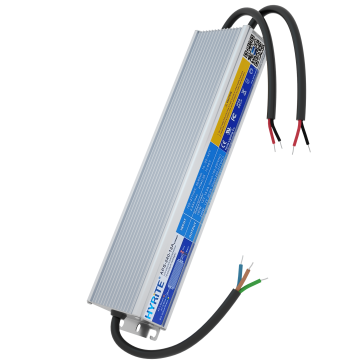

APS-240-12A LED Power Supply | Optional Class 2, Four 60W Outputs
- APS-240-12A constant-voltage LED power supply
- Optional Class 2 version: four 12V/5A outputs, 60W each; 240W total
- UL Recognized Component; IP68-rated construction
- Built-in active PFC
- Optional 12V Class 2 version dimensions: 292 × 71.5 × 38mm; weight: 1.45kg
- Confirm the required version and matching specifications
- Check version-specific derating before selection
Availability: In stock
You must logged in to see Price.
Related
-
APS-A 180W UL Recognized LED Power Supply | APS-180-12A / APS-180-24AYou must logged in to see Price.Add to Wishlist -
APS-A 60W UL Recognized LED Power Supply | APS-60-12A / APS-60-24AYou must logged in to see Price.Add to Wishlist -
APS-A 300 Series UL Recognized LED Power Supply | 12V 270W / 24V 300WYou must logged in to see Price.Add to Wishlist -
APS-120-12A Class 2 LED Power Supply | Dual 60W OutputsYou must logged in to see Price.Add to Wishlist
Details
Details
Optional Class 2 version for LED signage and lighting
Optional Class 2 version available with four 60W outputs (240W total). The optional APS-240-12A Class 2 version provides four 12V DC outputs, each rated at 5A / 60W. Confirm the required version when ordering; the following multi-output details refer to this optional version.
- UL Recognized Component
- Four outputs: 12V DC, 5A, 60W per output; 240W total
- Input: 100–277V AC (±10%), 47–63Hz
- IP68 aluminium enclosure with active PFC
- Dimensions: 292 × 71.5 × 38mm; net weight: 1.45kg
Selection and installation
Check each output load separately and allow suitable design margin. Follow the specification derating curves for input voltage and operating temperature. This is not a single 240W output.
Request a project quotation
Contact HYRiTE about the optional APS-240-12A Class 2 version. Please include your company, destination country, quantity, AC input voltage and the LED load on each output.
Additional Info
Additional Info
| Model no. | APS-240-12A (Class 2, four outputs) |
|---|---|
| Input voltage | 100-277 VAC (±10%), 47-63 Hz |
| Input Voltage System | 100-240VAC |
| Max. output power | 4 x 60 W; 240 W total |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 12 VDC per output (4 outputs) |
| Max. output current | 5 A per output (4 outputs) |
| Installation | Outdoor waterproof |
| Protection | Overload, Short circuit |
| Dimensions(L*W*H) | 292 x 71.5 x 38 mm |
| Weight(kg) | 1.4500 |
