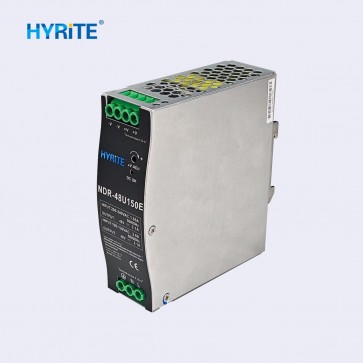

NDR-150E 150W DIN Rail LED Power Supply | 12V 24V 48V Constant Voltage LED Driver

Product Overview

The NDR-E Series DIN Rail Power Supply is a cost-effective indoor constant voltage power supply designed for industrial LED lighting, commercial lighting systems, and control cabinet applications. As a reliable DIN rail LED power supply solution, it features a 100–240VAC universal input for models up to 200W, while models 250W and above support 110/220VAC selectable input, offering flexible installation for different power environments.

Available in 12V, 24V, and 48V output options, the NDR-E Series is suitable for a wide range of constant voltage LED applications. It supports mounting on TS-35/7.5 and TS-35/15 DIN rails, making it an ideal DIN rail mounted power supply for indoor industrial and commercial use. The output voltage is adjustable for greater flexibility in system design, and the optional DC OK signal enables convenient output status monitoring for control and automation systems.

With its compact size, free air convection cooling, and reliable protection design, the NDR-E Series DIN rail LED driver power supply provides stable and efficient performance for LED strips, signage lighting, industrial control systems, commercial cabinets, and other indoor constant voltage lighting projects.

Key Features

• DIN rail mounted constant voltage power supply for indoor applications
• Universal 100–240VAC input for models up to 200W
• 110/220VAC selectable input for models 250W and above
• Available in 12V, 24V, and 48V output options
• Adjustable output voltage for flexible system requirements
• Optional DC OK signal for output status monitoring
• Compact size for space-saving cabinet installation
• Supports TS-35/7.5 and TS-35/15 DIN rail mounting
• Free air convection cooling design
• Reliable protection functions for stable operation

Model Options

The NDR-E Series is available in multiple voltage and wattage options to meet different indoor application requirements. Please review the model options below to choose the right model for your project. The optional DC OK function is available on selected models for convenient status monitoring.

Applications

The NDR-E Series DIN rail power supply is suitable for a wide range of indoor constant voltage applications, including:

• Industrial LED lighting systems
• Commercial lighting installations
• Control cabinets and automation systems
• LED strip lighting power supply
• Signage lighting applications
• Indoor constant voltage LED projects

Technical Specifications

The NDR-E series DIN rail power supply is offered in multiple power wattages, with DC output options of 12V, 24V and 48V, fully meeting the requirements of various indoor applications.

For detailed parameters, please refer to the official product specification sheet.

• Input voltage range: 95-264VAC
• Input frequency range: 47-63Hz
• Working temperature: -20℃ to +60℃
• Storage temperature: -40℃ to +85℃
• Working humidity: 20-90% RH, non-condensing

Safety & EMC Standards

The NDR-E Series complies with the following safety and EMC standards:

• UL60950-1
• CE EN60950-1
• EMC Emission: EN55022 Class A, GB9254 Class A
• EMC Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN61000-6-1

Why choose the NDR-E Series DIN rail power supply?

The NDR-E Series combines cost-effectiveness, compact DIN rail design, adjustable output voltage, optional DC OK monitoring, and reliable protection functions, making it a practical solution for indoor LED lighting and industrial control applications.

FAQ

1. What is the NDR-E Series used for?

The NDR-E Series DIN rail power supply is designed for indoor constant voltage applications, including industrial LED lighting, commercial lighting systems, control cabinets, automation systems, LED strips, and signage lighting.

2. What output voltages are available for the NDR-E Series?

The NDR-E Series is available in 12V, 24V, and 48V DC output options, making it suitable for different constant voltage LED lighting and industrial power supply requirements.

3. What input voltage does the NDR-E Series support?

NDR-150E supports short circuit, overload and over voltage protection.

4. What applications is NDR-150E suitable for?

Models up to 200W support 100–240VAC universal input, while models 250W and above feature 110/220VAC selectable input for flexible installation in different indoor power environments.

5. Is the output voltage adjustable?

Yes. The output voltage is adjustable, which provides greater flexibility for system integration and helps match the power supply to different application requirements.

6. Does the NDR-E Series support remote status monitoring?

Yes. An optional DC OK signal is available for convenient output status monitoring, making the series suitable for control cabinets and automation applications.

7. What DIN rail standards does the NDR-E Series support?

The NDR-E Series is designed for TS-35/7.5 and TS-35/15 DIN rail mounting, allowing quick and convenient installation in standard control cabinet systems.

8. Is the NDR-E Series suitable for outdoor use?

No. The NDR-E Series is designed for indoor use only. It is recommended for indoor industrial and commercial environments where DIN rail mounting is required.

9. What cooling method does the NDR-E Series use?

The NDR-E Series uses free air convection cooling, which helps ensure reliable performance without the need for additional fan cooling in normal indoor installations.

10. What applications is this DIN rail power supply suitable for?

This DIN rail mounted constant voltage power supply is suitable for:

• Industrial LED lighting systems
• Commercial lighting installations
• Control cabinets
• Automation systems
• LED strip lighting
• Signage lighting
• Other indoor constant voltage LED projects

11. Why choose the NDR-E Series DIN rail power supply?

The NDR-E Series combines cost-effectiveness, compact DIN rail design, adjustable output voltage, optional DC OK monitoring, and reliable protection functions, making it a practical solution for indoor LED lighting and industrial control applications.
