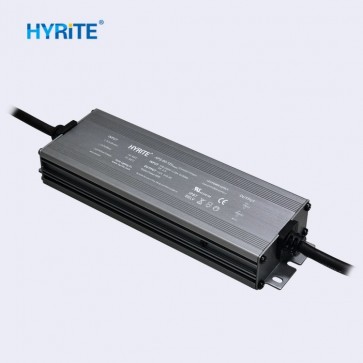

APS-B 60W 12V/24V IP67 LED Power Supply

APS-B 60W LED power supply for signage

The HYRiTE APS-B 60W provides constant-voltage power for compatible 12V or 24V LED modules and lighting. Its metal enclosure, IP67-rated construction and 190 × 60 × 28 mm dimensions support integration into signage projects where mounting space and reliable power delivery matter.

12V and 24V model options

Class 2 versions are available only in the APS-B 20–60W range. A 24V Class 2 version requires custom ordering. Confirm the required output voltage and Class 2 configuration when ordering.

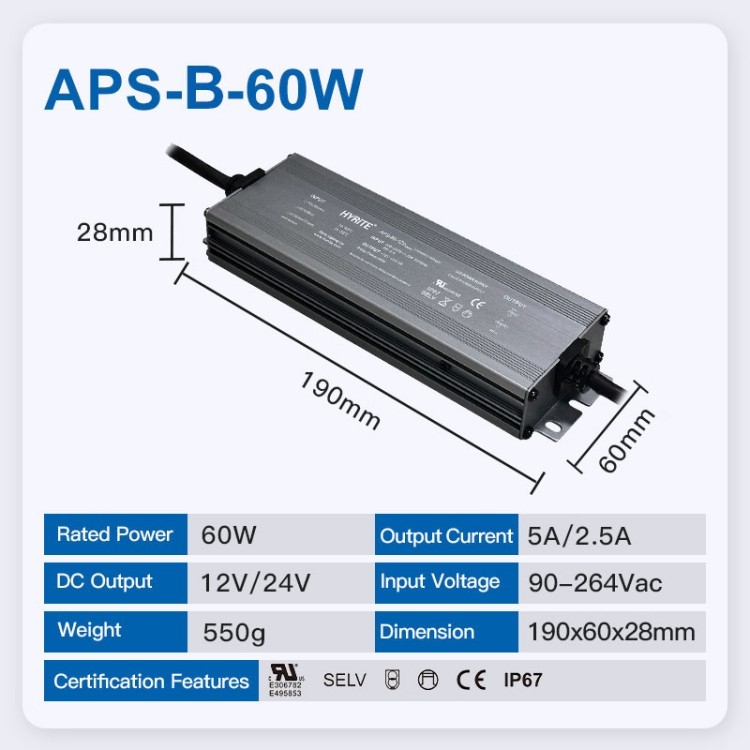

Key specifications

• 90–264V AC input; follow the model-specific input-voltage loading curve.
• 88% efficiency.
• IP67-rated metal enclosure with free-air convection cooling.
• Dimensions (L × W × H): 190 × 60 × 28 mm.
• Net weight: 0.56 kg per unit.
• Overload and short-circuit protection.
• 3-year warranty, subject to warranty conditions.

LED signage applications and selection

Use the matching constant-voltage model for compatible channel-letter modules, LED light boxes and commercial signage lighting. Select the output voltage to match the LED load, and check the total load against the model's rated output and derating requirements.

Provide adequate ventilation and follow the model's installation instructions. Request the matching specification sheet for temperature-dependent loading and connection requirements.
