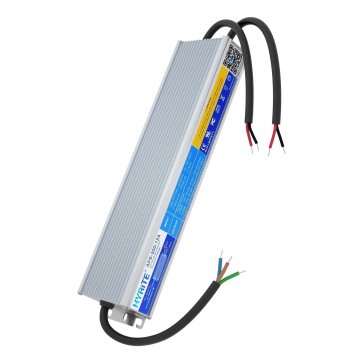

APS-A 300 Series UL Recognized LED Power Supply | 12V 270W / 24V 300W
- APS-A 300 series constant-voltage LED power supplies
- APS-300-12A: 12V DC, 22.5A, rated at 270W
- APS-300-24A: 24V DC, 12.5A, rated at 300W
- UL Recognized Component; IP68-rated construction; active PFC
- Efficiency: 91%
- 5 Year warranty*(with conditions)
- Check model-specific derating before selection
Availability: In stock
You must logged in to see Price.
Details
Details
APS-A 300 series constant-voltage LED power supplies for LED lighting and signage projects. The two output models have different rated powers:
- APS-300-12A: 12V DC, 22.5A, 270W
- APS-300-24A: 24V DC, 12.5A, 300W
Both models: UL Recognized Component; 100–277V AC (±10%), 47–63Hz; IP68 enclosure; active PFC; 294 × 71.5 × 38mm; 1.33kg net weight.
Selection note: APS-300-12A is rated 270W, not 300W. Available output depends on AC input voltage and ambient temperature; check the model-specific derating curves, especially on 100–120V mains.
For a project quotation, send an enquiry with your model, company, quantity, destination country, AC input voltage and LED application. Our team can confirm the current specification and documentation for your market.
Additional Info
Additional Info
| Model no. | APS-300-12A / APS-300-24A |
|---|---|
| Input voltage | 100-277 VAC (±10%), 47-63 Hz |
| Input Voltage System | 100-240VAC |
| Max. output power | 270 W (12V) / 300 W (24V) |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 12VDC / 24VDC |
| Max. output current | 22.5 A (12V) / 12.5 A (24V) |
| Installation | Outdoor waterproof |
| Protection | Overload, Short circuit |
| Dimensions(L*W*H) | 294 x 71.5 x 38 mm |
| Weight(kg) | 1.3300 |
Datasheets
 APS-300-12A | Specification 2024.07.01 Size: (755.77 KB) |
|
| APS-300-24A | Specification 2024.07.01 Size: (770.43 KB) |
