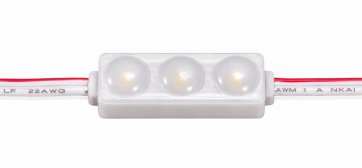

MM Mini 3-LED Module | 12V 6500K
Compact 3-LED module with Philips LEDs, 0.7W power, 75 lm output, 160° beam angle and IP67 protection. 12V DC, 6500K; model LEDMM-W350-PH-P65.
Availability: In stock
You must logged in to see Price.
Details
Details
MM Mini 3-LED Module
LEDMM-W350-PH-P65 is a compact 12V white LED module for illuminated signage. 3 Philips 2835 LEDs and a 160° beam angle provide wide light distribution in a small housing.
Key Features
- 0.7W power and 75 lm light output per module
- 6500K white light
- 160° beam angle and IP67 protection
- Compact 26.6 × 9 × 8.5 mm dimensions
- 50 modules per chain
Technical Specifications
| Parameter | Specification |
|---|---|
| HYRiTE Model | LEDMM-W350-PH-P65 |
| Input Voltage | 12V DC |
| Power | 0.7W / module |
| Luminous Flux | 75 lm / module |
| Colour Temperature | 6500K |
| LEDs | 3 × Philips 2835 SMD |
| Beam Angle | 160° |
| IP Rating | IP67 |
| Dimensions (L × W × H) | 26.6 × 9 × 8.5 mm |
| Module Centre Spacing | 70 mm |
| Wire Gauge | 22 AWG |
| Modules per Chain | 50 |
| Net Weight | 3 g / module |
| Warranty | 5 years |
| Maximum Connection | 50 modules per chain |
Installation & Packing
Use a 12V DC constant-voltage power supply. Connect no more than 50 modules per chain. Check the polarity markings on the supplied module before connecting.
200 modules/bag; 5,000 modules/carton; carton: 35 × 34 × 30 cm.
Additional Info
Additional Info
| Model no. | LEDMM-W350-PH-P65 |
|---|---|
| PCB code/version | No |
| Color | Cool White |
| Current Control | No |
| Wave length (nm) | No |
| Unit watt | 0.7W |
| Module voltage | 12V DC |
| Module current | No |
| Viewing angle | 160° |
| LEDs/module | 3 |
| Luminance(lm) | 75 |
| Life Time(hrs,ta=25℃) | No |
| IP rating | IP67 |
| Modules distance | 70 mm (centre to centre) |
| Modules/Foot | No |
| Dimensions(L*W*H) | 26.6 × 9 × 8.5 mm |
| Weight(kg) | 0.0030 |
| Modules/Chain | 50 |
| Chains/Pack | 4 |
| Packing information | 200 modules/bag; 5,000 modules/carton; carton: 35 × 34 × 30 cm |
