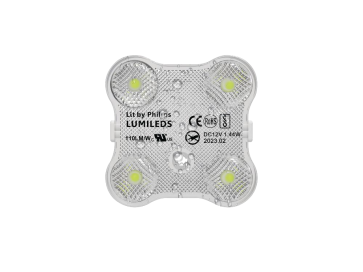

MK-P 4-LED Module | 12V 6500K
MK-P four-LED module, 12V DC and 6500K cool white, with Philips Lumileds LEDs, 175° viewing angle and manufacturer-rated IP68 protection. 1.44 W per module; 20 modules per chain.
Colour & Ordering Options
| Shown configuration | DC12V, 6500K white (W) |
|---|---|
| White options | 2700–10000K on request; confirm the required CCT. |
| Single colours | Red (R), Blue (B), Green (G), Yellow (Y) |
| Voltage | DC12V standard; DC24V optional, subject to confirmation. |
White versions use Philips LEDs; single-colour versions use Epistar LEDs. White-light output and CRI values do not apply to coloured versions.
For an enquiry: include this model, your required colour or CCT, voltage and quantity. We will confirm the exact ordering code, specifications, availability and lead time.
Availability: In stock
You must logged in to see Price.
Details
Details
The MK-P four-LED module is designed for illuminated signage.
LED & optical performance
| Parameter | Specification |
|---|---|
| LED brand | Philips Lumileds |
| LED package | 2835 SMD |
| LEDs per module | 4 |
| Power per module | 1.44 W |
| Luminous flux per module | 220–230 lm |
| Calculated efficacy | approximately 152.8–159.7 lm/W, calculated from flux and power; not a measured rating |
| Viewing angle | 175° |
| CRI | ≥80; higher CRI available subject to confirmation |
| Color consistency | 5 SDCM |
Dimensions & installation
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 41 × 41 × 11 mm |
| Module center spacing | 200 mm |
| Modules per chain | 20 |
| Maximum connected modules | ≤20; this does not mean an electrical series circuit |
| Recommended installation depth | 50–200 mm |
| Wire size | 20 AWG |
Materials & protection
| Parameter | Specification |
|---|---|
| Housing | ABS |
| Lens | PC |
| Construction | ultrasonically welded housing, screw-type solderless connection and continuous wire |
| Installation aid | 3M double-sided adhesive with easy-peel liner |
| Protection | IP68, manufacturer rated |
| Operating temperature | −20 to +60°C |
| Storage temperature | −40 to +60°C |
Lifetime & warranty
| Parameter | Specification |
|---|---|
| Nominal lifetime | 50,000 h; evaluation conditions not supplied |
| Warranty | 5 years, subject to installation, storage and maintenance guidelines |
Additional Info
Additional Info
| Model no. | LEDMK-W420-PH-P65 |
|---|---|
| PCB code/version | No |
| Color | Cool White |
| Current Control | No |
| Wave length (nm) | No |
| Unit watt | 1.44 W/module |
| Module voltage | DC12V |
| Module current | No |
| Viewing angle | 175° |
| LEDs/module | 4 |
| Luminance(lm) | 220–230 lm/module |
| Life Time(hrs,ta=25℃) | No |
| IP rating | IP68 (manufacturer rated) |
| Modules distance | 200 mm (center to center) |
| Modules/Foot | No |
| Dimensions(L*W*H) | 41 × 41 × 11 mm |
| Weight(kg) | 0.0160 |
| Modules/Chain | 20 |
| Chains/Pack | No |
| Packing information | 100 modules/bag; 1000 modules/carton; carton 48 × 28 × 38 cm; net weight 16 kg/carton; gross weight 18 kg/carton. Per-module weight 16 g is a carton-based allocation, not an individually measured weight. |
